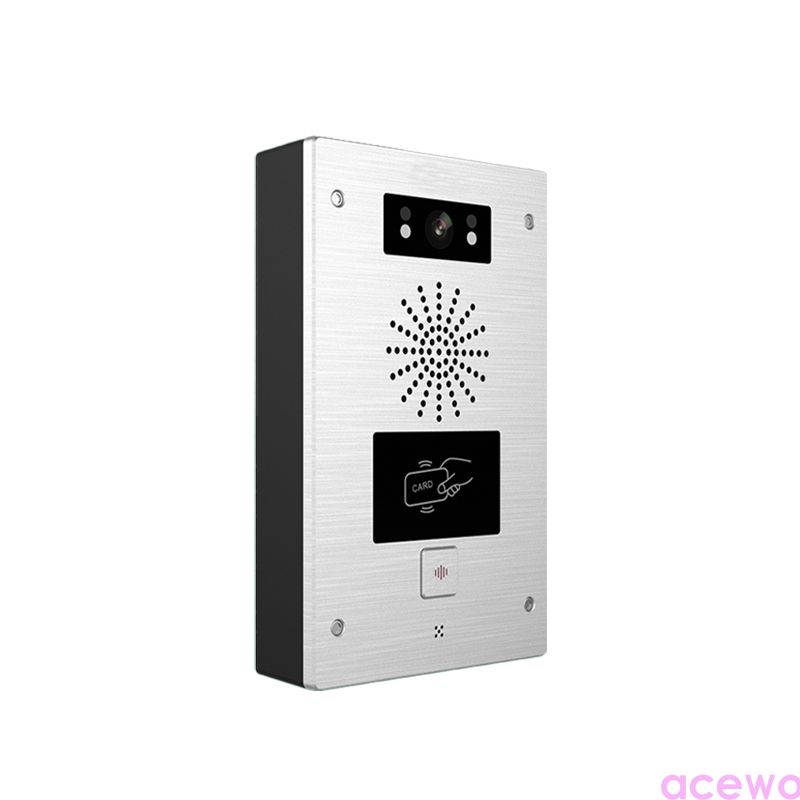

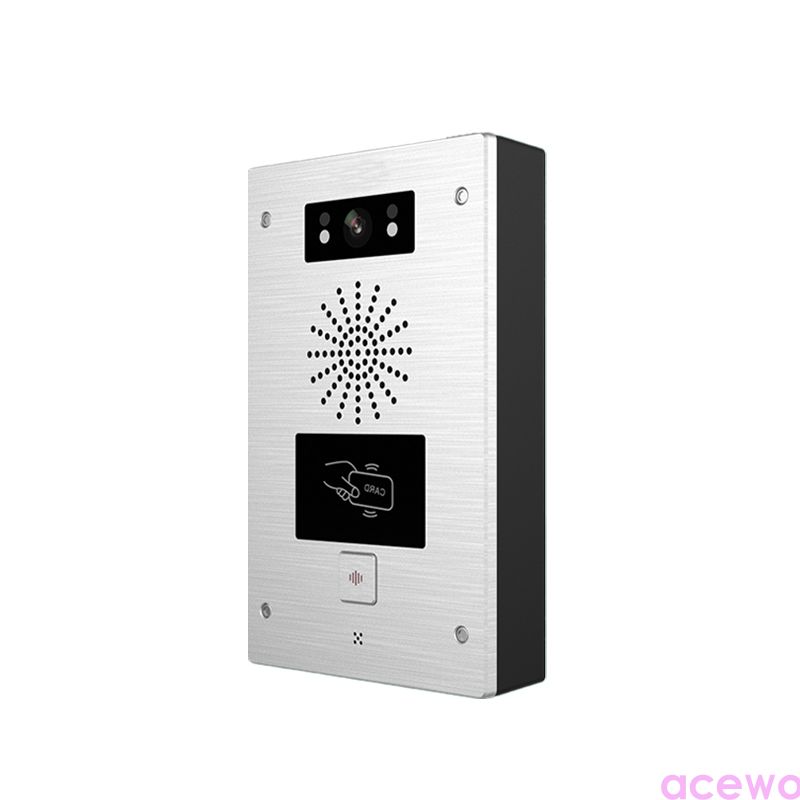

IP Video Intercom

Features

1. Integrated HD camera with infrared illuminator, utilizing H.264 encoding technology

2. Access control functionality (intercom door release, RFID/IC card access, indoor door operation)

3. Three-in-one design (access control, intercom system, public address system)

4. Built-in 3W speaker with AEC (Acoustic Echo Cancellation) algorithm for high-definition full-duplex hands-free communication

5. IP65 protection rating

6. Aluminum alloy front panel with cast aluminum base structure, meeting IK10 vandal-resistant standards

7. Wide operating temperature range: -40°C to 70°C

8. Supports online system management and firmware upgrades

9. High compatibility—adapts to mainstream SIP protocol IP PBX/softswitch/IMS platforms such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, etc.

Specifications

Full-Duplex Hands-Free Communication
Intelligent DSS Keys (Speed Dial/Intercom, etc.)
Auto-Answer
Intercom Function
Standards Certification: IP65 & IK10, CE/FCC
Door Opening Methods: DTMF, RFID/IC Card, Indoor Switch, Web-Based Door Release
Supports 5,000 Remote Access Entries
Supports 5,000 RFID/IC Cards
Stores 200,000 Door Opening Records
Electric Lock Power Supply: Internal/External Power Options
Dynamic Multicast Function
ONVIF Compliant
Customizable DSS Keys
Network Time Synchronization
Action URL/Active URI
Sensor: 1/2.7” Color CMOS
Pixel: 2MP
Video Encoding: H.264
Resolution: Main Stream 1280×720@25fps, Sub-Stream 704×576(D1)@25fps
Viewing Angle: 112°(H), 84°(V)
Minimum Illumination: 0.1Lux, Infrared Illumination Supported
1 x DSS Key (Speed Dial Key), 1 x RJ45 Interface
1 x Wiegand Interface
1 x Audio Output Interface
1 x Recording Output Interface
2 x Dry Contact Inputs
2 x Relays: MAX DC30V / 2A, AC125V / 0.5A
Active Switch Output: 12V / 500mA DC (Supported by 1 relay only)
2 x Door Contact Detection Interfaces
1 x Tamper Alarm Switch
RFID Reader: ID (EM4100, 125KHz) & IC (MIFARE ONE, 13.56MHz)
Power Supply: DC12V/1A or PoE
Enclosure Material: Aluminum Alloy
Protection Rating: IP65 and IK10
Mounting Method: Wall-Mounted

Certificate
