The product is highly suitable for use in mines, parks, scenic areas, subways.
Features and Specifications
1.Equipped with a high-definition camera and infrared fill light, using H.264 encoding to achieve full-duplex visual intercom with clear video images.
2.Built-in 3W speaker and AEC algorithm ensure high-quality two-way hands-free calling. Protection level: IP65.
3.Supports high-definition video calls and full-duplex visual intercom, with a high-definition camera and infrared fill light for clear video.
4.Features an aluminum alloy front shell and cast aluminum bottom shell, with an anti-violence rating of IK10.
5.Anti-tamper design on the front cover: triggers an alarm to the control center when tampering is detected.
6.Wide temperature operation: -40°C to 70°C.
7.Built-in 2-way short-circuit input and 2-way short-circuit output interfaces.
8.Online system management and upgrade.
9.High compatibility: compatible with mainstream SIP-based IPPBX/softswitch/IMS platforms such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, etc.
1 DSS key (speed dial key)
1 RJ45 interface
1 audio output interface
1 recording output interface
2-way short-circuit input interfaces
2 relays: MAX DC30V/2A, AC125V/0.5A
Active switch output: 12V/500mA DC (supported by only 1 relay)
2 indoor switch interfaces
1 anti-tamper alarm switch
Power supply: DC12V/1A or PoE
Housing material: Aluminum alloy
Protection rating: IP65 and IK10
Installation method: Wall-mounted
Operating temperature: -40 ~ 70°C
Storage temperature: -40 ~ 70°C
Relative humidity: 10% - 90%
Sensor: 1/2.7" color CMOS
Pixel: 2 megapixels
Video encoding: H.264
Resolution: Main stream 1280×720@25fps, sub-stream 704×576(D1)@25fps
Viewing angle: 112°(H), 84°(V)
Minimum illuminance: 0.1Lux, supports infrared lighting
Certifatice
Case

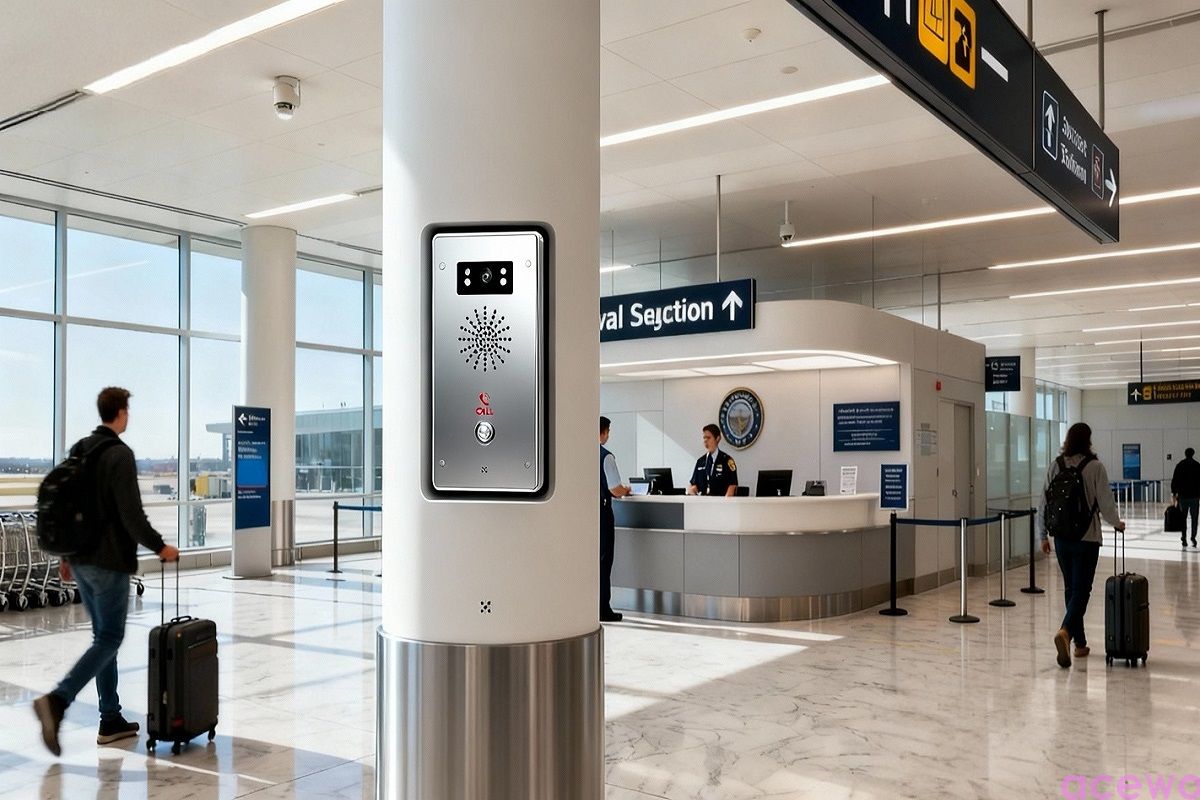

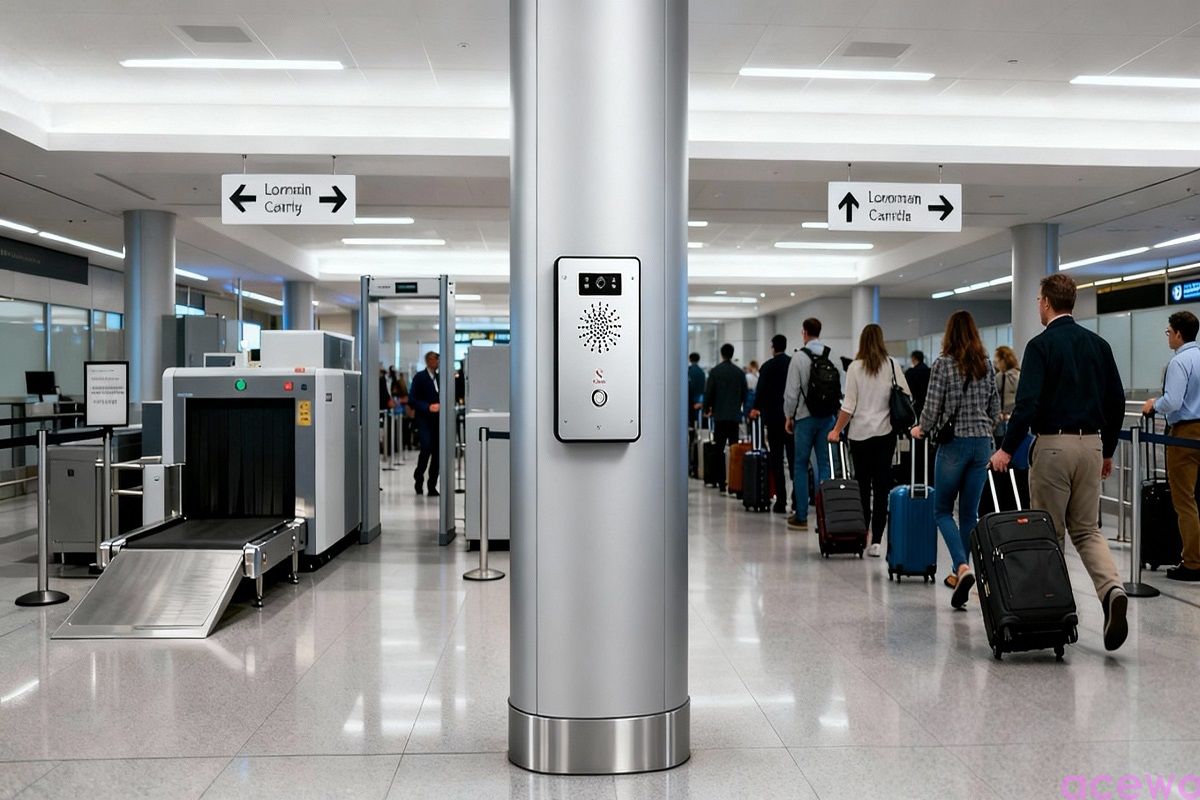

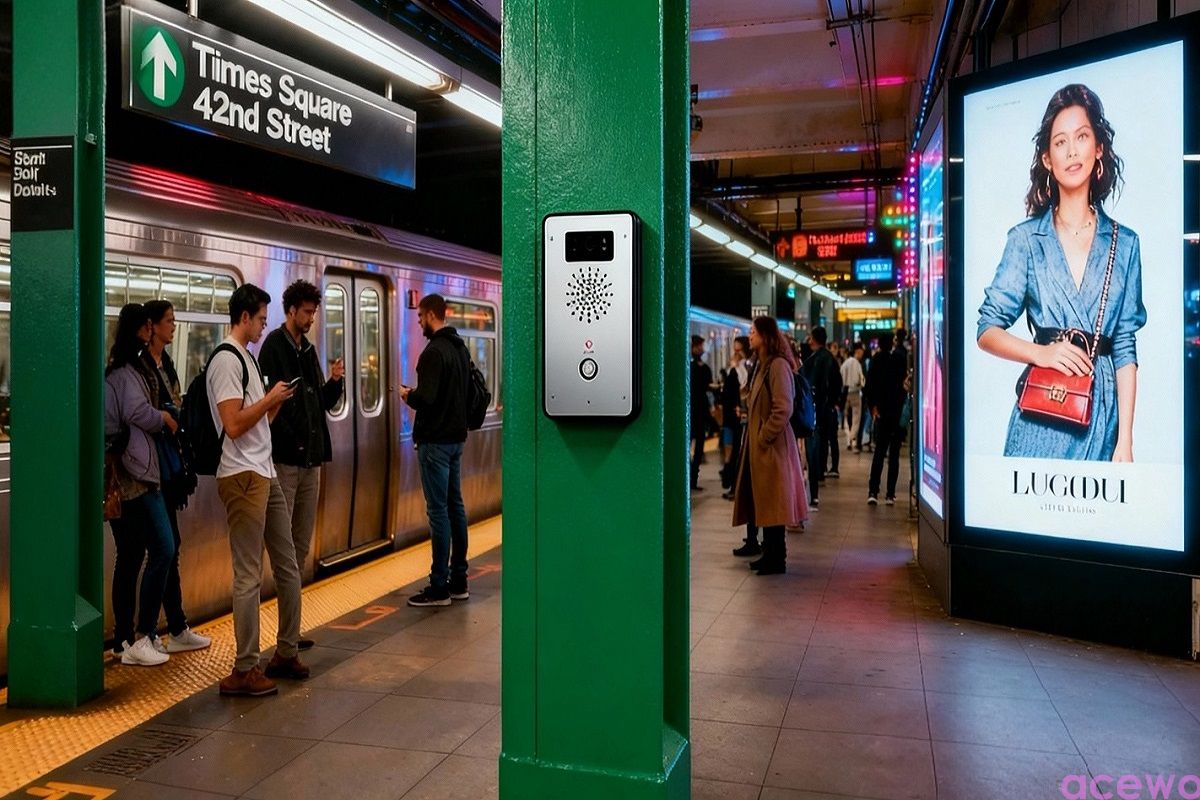

video intercom, suitable for urban rail transit, high-speed rail tracks, mines, scenic areas, parks, docks, petrochemical plants, and similar environments
