Use on highways, unmanned facilities, power generation, metallurgy,coal mining
Specifications
Product Model KN-156S
Operating System Windows 10 64-bit
CPU Quad-core processor
Memory 8GB
Storage 128GB SSD
Display 15.6" capacitive touchscreen
USB Ports 2
Network Ports 3x RJ45 ports
Wi-Fi Built-in USB wireless adapter
Headphone Jack 3.5mm
HDMI Port: 1
Power Switch: 1 button
Gooseneck Microphone: Supported
Power Adapter: Input: AC 100-240V, Output: DC 12V/10A
Dimensions (Main Unit): 570*272*82mm
Weight: 7kg
Features
1.High-Definition Audio
Equipped with an industrial-grade handle and a gooseneck microphone featuring high-definition pickup, delivering a more convenient and seamless operational experience fo r management centers.
2.Industrial-Grade Keypad
The KN-156S features a 4x4 industrial-grade keypad with 4 customizable keys, allowing flexible function definition based on specific application scenarios.

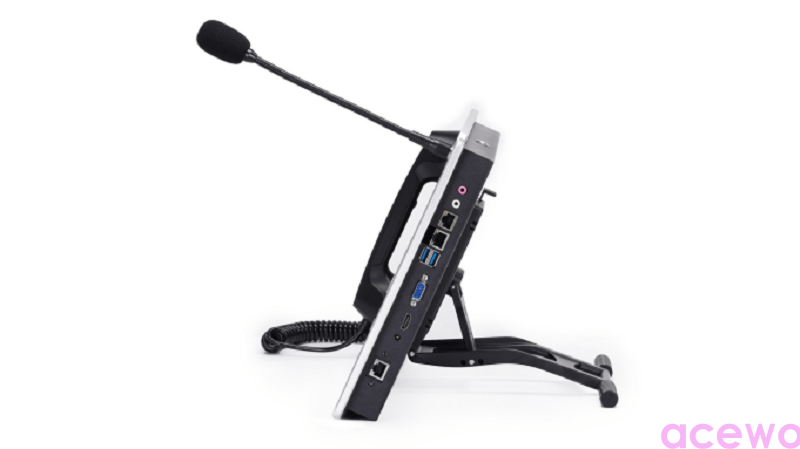

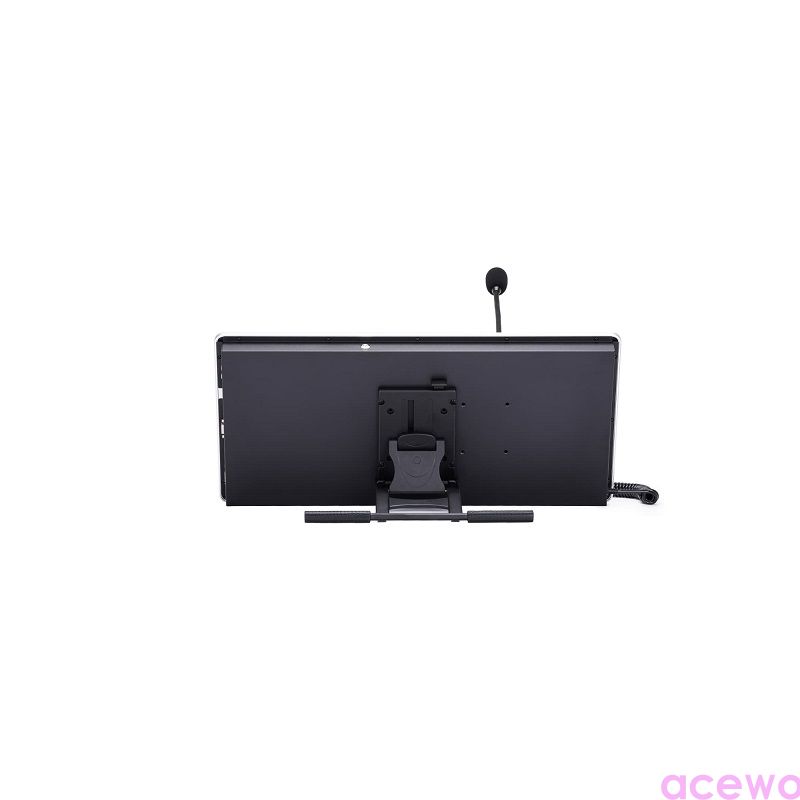

3.Adjustable Mounting Bracket
The KN-156S includes a non-slip, adjustable bracket enabling multi-angle vertical positioning of the device.
4.Multi-Operating System Support
The KN-156S natively supports both Windows 10 and Linux operating systems.

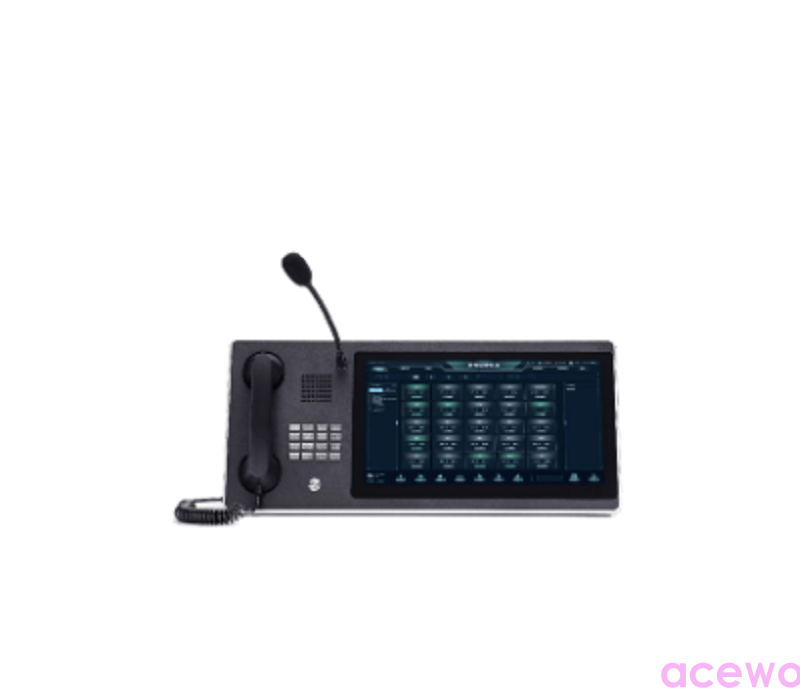

The KN-156S is an industrial-grade touchscreen dispatch console designed for unified emergency command and dispatch systems. Featuring a 15.6-inch touchscreen and an integrated IP phone, it provides a visual graphical dispatch interface that clearly displays dispatcher status at a glance. This enables highly efficient dispatch operations, facilitating accurate decision-making and rapid command execution.
Certificate
Case
The KN-156S supports an integrated “Voice Broadcast + Intercom Terminal + Multimedia Console (Multi-Terminal Convergence)” solution. It combines emergency intercom, emergency telephony, emergency broadcasting, visual dispatch, real-time recording, video linkage, wireless trunking, alarm linkage, and electronic mapping. Capable of multi-level architecture management, it meets the diverse requirements of scenarios such as highways, unmanned facilities, industrial enterprises, power plants, metallurgy, rail transit, petroleum, coal, mining, and smart cities.
